iOS布局从Frame到Autosizing，再到Autolayout。Storyboard上使用Autolayout对于层级不深的页面来说比较方便，大大提升了开发速度，但App体积也会增加不少，用代码写Autolayout就不是那么方便了。如

// view1已经使用Autolayout布好局了

let view0 = UIView()
view0.backgroundColor = UIColor.gray
view0.translatesAutoresizingMaskIntoConstraints = false
self.view.addSubview(view0)
let leftConstraint = NSLayoutConstraint(item: view0, attribute: NSLayoutAttribute.left, relatedBy: NSLayoutRelation.equal, toItem: view1, attribute: NSLayoutAttribute.left, multiplier: 1, constant: 100)
let topConstraint = NSLayoutConstraint(item: view0, attribute: NSLayoutAttribute.top, relatedBy: NSLayoutRelation.equal, toItem: self.view, attribute: NSLayoutAttribute.top, multiplier: 1, constant: 20)
let widthConstraint = NSLayoutConstraint(item: view0, attribute: NSLayoutAttribute.width, relatedBy: NSLayoutRelation.equal, toItem: self.view, attribute: NSLayoutAttribute.width, multiplier: 0.5, constant: 0)
let heightConstraint = NSLayoutConstraint(item: view0, attribute: NSLayoutAttribute.height, relatedBy: NSLayoutRelation.equal, toItem: view0, attribute: NSLayoutAttribute.width, multiplier: 1, constant: 0)
let constraints = [leftConstraint, topConstraint, widthConstraint, heightConstraint]
NSLayoutConstraint.activate(constraints)

布好一个控件就要写很长串，还怕写错，比较麻烦。

SnapKit是对Autolayout的封装，是Objective-C Masonry的同一个团体Swift版本。

使用Swift先进语法以及拟多态的方法极大地简化了代码写Autolayout约束，如：

let view1 = UIView()
view1.backgroundColor = UIColor.red
self.view.addSubview(view1)
view1.snp.makeConstraints { (make) in
    make.left.top.right.bottom.equalTo(0).offset(0).multipliedBy(1)
}

阅读起来很简单且使用方便

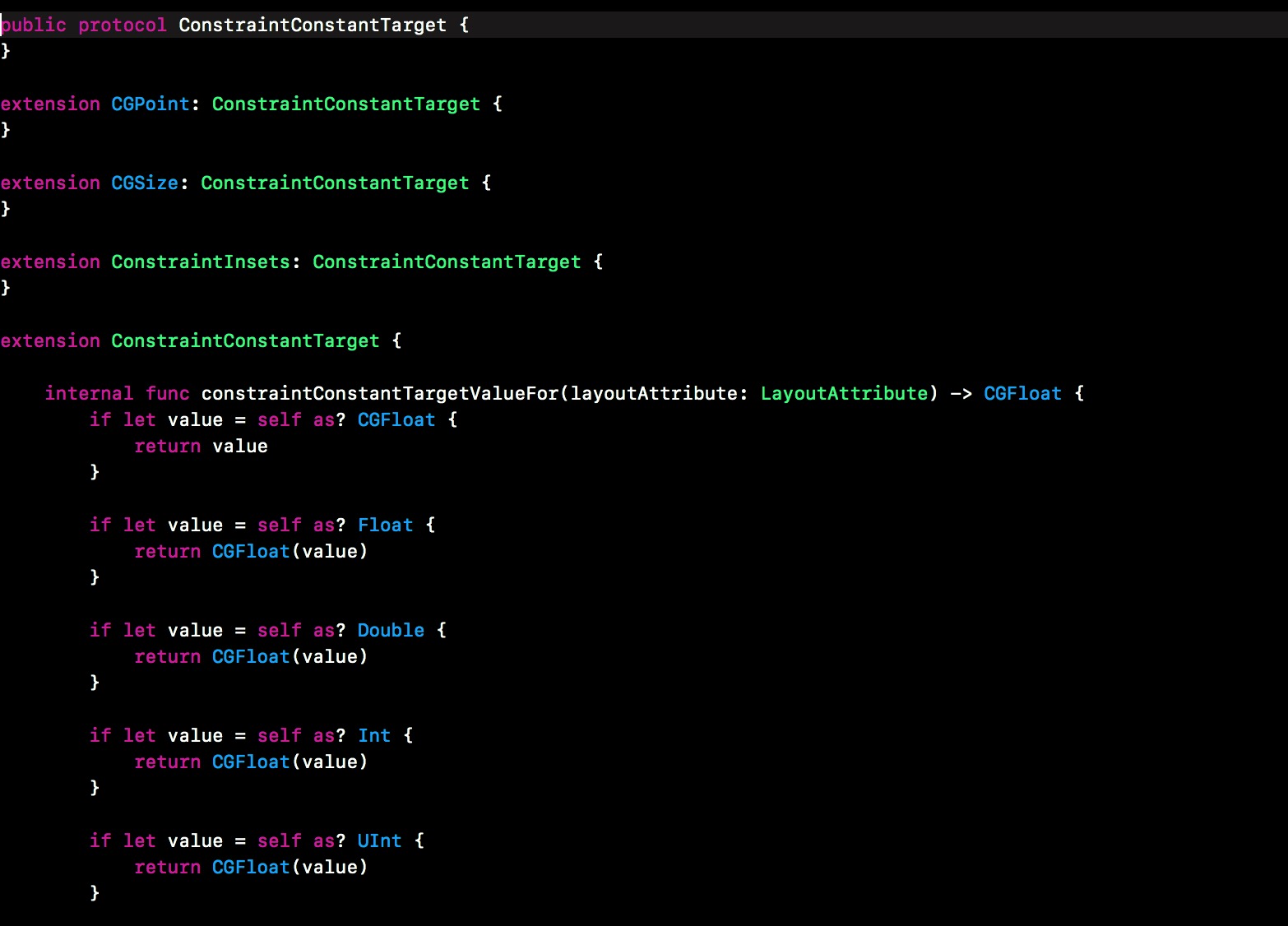

声明ConstraintConstantTarget(ConstraintOffsetTarget、ConstraintInsetTarget)，然后通过extension对一些已经存在的或者自定义的类型通过NSLayoutAttribute来转换成NSLayoutConstraint的constant，ConstraintMultiplierTarget通过extension来改变NSLayoutConstraint的multiplier,ConstraintPriorityTarget通过extension来改变NSLayoutConstraint的priority等。

这种编程方法值得学习。

声明ConstraintAttributes，将所有的属性都定义下来

internal static var none: ConstraintAttributes { return self.init(0) }
internal static var left: ConstraintAttributes { return self.init(1) }
internal static var top: ConstraintAttributes {  return self.init(2) }
internal static var right: ConstraintAttributes { return self.init(4) }
internal static var bottom: ConstraintAttributes { return self.init(8) }
internal static var leading: ConstraintAttributes { return self.init(16) }
internal static var trailing: ConstraintAttributes { return self.init(32) }
internal static var width: ConstraintAttributes { return self.init(64) }
internal static var height: ConstraintAttributes { return self.init(128) }
internal static var centerX: ConstraintAttributes { return self.init(256) }
internal static var centerY: ConstraintAttributes { return self.init(512) }
internal static var lastBaseline: ConstraintAttributes { return self.init(1024) }

@available(iOS 8.0, OSX 10.11, *)
internal static var firstBaseline: ConstraintAttributes { return self.init(2048) }

@available(iOS 8.0, *)
internal static var leftMargin: ConstraintAttributes { return self.init(4096) }

@available(iOS 8.0, *)
internal static var rightMargin: ConstraintAttributes { return self.init(8192) }

@available(iOS 8.0, *)
internal static var topMargin: ConstraintAttributes { return self.init(16384) }

@available(iOS 8.0, *)
internal static var bottomMargin: ConstraintAttributes { return self.init(32768) }

@available(iOS 8.0, *)
internal static var leadingMargin: ConstraintAttributes { return self.init(65536) }

@available(iOS 8.0, *)
internal static var trailingMargin: ConstraintAttributes { return self.init(131072) }

@available(iOS 8.0, *)
internal static var centerXWithinMargins: ConstraintAttributes { return self.init(262144) }

@available(iOS 8.0, *)
internal static var centerYWithinMargins: ConstraintAttributes { return self.init(524288) }

// aggregates

internal static var edges: ConstraintAttributes { return self.init(15) }
internal static var size: ConstraintAttributes { return self.init(192) }
internal static var center: ConstraintAttributes { return self.init(768) }

@available(iOS 8.0, *)
internal static var margins: ConstraintAttributes { return self.init(61440) }

@available(iOS 8.0, *)
internal static var centerWithinMargins: ConstraintAttributes { return self.init(786432) }

可以看到每个属性都是2的n次方

通过 var layoutAttributes:[LayoutAttribute] 来获取NSLayoutAttribute集合，这里用到Swift OptionSet类的union、formUnion、subtract和contains语法

ConstraintView的extensions中snp变量返回ConstraintViewDSL对象,ConstraintLayoutGuideDSL是它的子类，提供prepareConstraints、makeConstraints、remakeConstraints、updateConstraints、removeConstraints等方法。

可以看到这些方法都是通过使用工厂类ConstraintMaker来管理约束的。

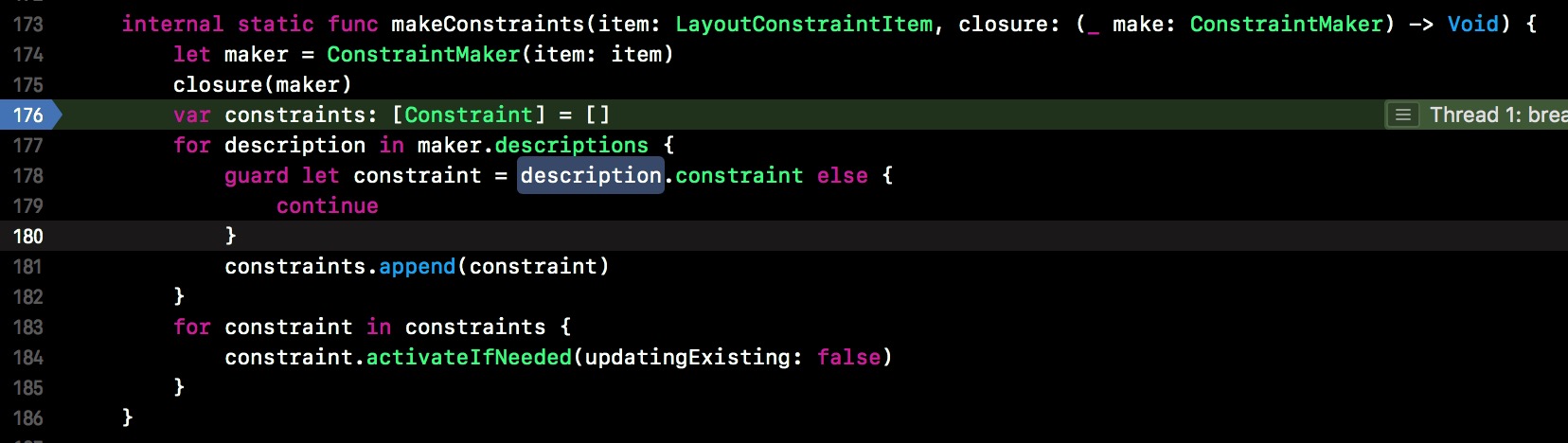

internal static func makeConstraints(item: LayoutConstraintItem, closure: (_ make: ConstraintMaker) -> Void) {
    let maker = ConstraintMaker(item: item)
    closure(maker)
    var constraints: [Constraint] = []
    for description in maker.descriptions {
        guard let constraint = description.constraint else {
            continue
        }
        constraints.append(constraint)
    }
    for constraint in constraints {
        constraint.activateIfNeeded(updatingExisting: false)
    }
}

ConstraintMaker的init方法：

internal init(item: LayoutConstraintItem) {
    self.item = item
    self.item.prepare()
}

以left为例(同以上举例 make.left.top.right.bottom.equalTo(0).offset(0).multipliedBy(1) )

public var left: ConstraintMakerExtendable {
    return self.makeExtendableWithAttributes(.left)
}

internal func makeExtendableWithAttributes(_ attributes: ConstraintAttributes) -> ConstraintMakerExtendable {
    let description = ConstraintDescription(item: self.item, attributes: attributes)
    self.descriptions.append(description)
    return ConstraintMakerExtendable(description)
}

ConstraintDescription是对NSLayoutConstraint的描述，生成Constraint对象，Constraint对象最终生成约束。

而之所以可以连着调用top、right、bottom得益于ConstraintMakerExtendable类： return self.makeExtendableWithAttributes(.left) 得到ConstraintMakerExtendable类，后面top

//ConstraintMakerExtendable
public var top: ConstraintMakerExtendable {
    self.description.attributes += .top
    return self
}

//ConstraintAttributes
internal func +=(left: inout ConstraintAttributes, right: ConstraintAttributes) {
    left.formUnion(right)
}

//ConstraintMakerExtendable
public func equalTo(_ other: ConstraintRelatableTarget, _ file: String = #file, _ line: UInt = #line) -> ConstraintMakerEditable {
    return self.relatedTo(other, relation: .equal, file: file, line: line)
}

internal func relatedTo(_ other: ConstraintRelatableTarget, relation: ConstraintRelation, file: String, line: UInt) -> ConstraintMakerEditable {
    let related: ConstraintItem
    let constant: ConstraintConstantTarget

    if let other = other as? ConstraintItem {
        guard other.attributes == ConstraintAttributes.none ||
              other.attributes.layoutAttributes.count <= 1 ||
              other.attributes.layoutAttributes == self.description.attributes.layoutAttributes ||
              other.attributes == .edges && self.description.attributes == .margins ||
              other.attributes == .margins && self.description.attributes == .edges else {
            fatalError("Cannot constraint to multiple non identical attributes. (\(file), \(line))");
        }

        related = other
        constant = 0.0
    } else if let other = other as? ConstraintView {
        related = ConstraintItem(target: other, attributes: ConstraintAttributes.none)
        constant = 0.0
    } else if let other = other as? ConstraintConstantTarget {
        related = ConstraintItem(target: nil, attributes: ConstraintAttributes.none)
        constant = other
    } else if #available(iOS 9.0, OSX 10.11, *), let other = other as? ConstraintLayoutGuide {
        related = ConstraintItem(target: other, attributes: ConstraintAttributes.none)
        constant = 0.0
    } else {
        fatalError("Invalid constraint. (\(file), \(line))")
    }

    let editable = ConstraintMakerEditable(self.description)
    editable.description.sourceLocation = (file, line)
    editable.description.relation = relation
    editable.description.related = related
    editable.description.constant = constant
    return editable
}

1
2
3

item1.attribute1 = multiplier × item2.attribute2 + constant

NSLayoutConstraint(item: from, attribute: from属性, relatedBy: related关系, toItem: to, attribute: to属性, multiplier: multiplier, constant: constant)

relatedTo这个方法生成related关系、“to”和“to”的属性和constant

接下来的offset和multipliedBy都是ConstraintMakerEditable类的实例方法

maker.descriptions 的每一个描述都生成Constraint对象，在Constraint的init方法中

let layoutConstraint = LayoutConstraint(
            item: layoutFrom,
            attribute: layoutFromAttribute,
            relatedBy: layoutRelation,
            toItem: layoutTo,
            attribute: layoutToAttribute,
            multiplier: self.multiplier.constraintMultiplierTargetValue,
            constant: layoutConstant
        )

生成了NSLayoutConstraint对象了,在Constraint类的方法activateIfNeeded中我们也发现了 NSLayoutConstraint.activate(layoutConstraints) 方法了。
