React Native 实现原理

发表于 | 分类于

RCTRootView 创建前到中

获取URL

从localhost/ip获取，或者从本地获取

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
[[RCTBundleURLProvider sharedSettings] jsBundleURLForBundleRoot:@"index"
        fallbackResource:nil] = {
    return [self jsBundleURLForBundleRoot:bundleRoot
                         fallbackResource:resourceName
                        fallbackExtension:nil] = {
        NSString *packagerServerHost = [self packagerServerHost] = {
            // debug模式下如果没有内置ip.txt，则返回localhost，release则返回nil
            NSString *location = [self jsLocation];
            if (location != nil) {
                return location;
            }
            #if RCT_DEV
            NSString *host = [self guessPackagerHost] = {
                // ...
                    NSString *ipPath = [[NSBundle mainBundle] pathForResource:@"ip"
                                         ofType:@"txt"];
                // ...

                NSString *host = ipGuess ?: @"localhost";
                // ...
            };
            if (host) {
                return host;
            }
            #endif
            return nil;
        };
        if (!packagerServerHost) {
            return [self jsBundleURLForFallbackResource:resourceName
                         fallbackExtension:extension];
        } else {
            // http://localhost:8081/index.bundle?platform=ios&dev=true&minify=false
            return [RCTBundleURLProvider jsBundleURLForBundleRoot:bundleRoot
                        packagerHost:packagerServerHost
                           enableDev:[self enableDev]
                  enableMinification:[self enableMinification]];
    };
};

创建 Bridge

1
2
3
4
5
6
7
8
9
10
11
12
13
[[RCTRootView alloc] initWithBundleURL:jsCodeLocation
                            moduleName:@"demo3"
                     initialProperties:nil
                         launchOptions:launchOptions] = {
                             RCTBridge *bridge =
                                [[RCTBridge alloc] initWithBundleURL:bundleURL
                                                    moduleProvider:nil
                                                    launchOptions:launchOptions];

                            return [self initWithBridge:bridge
                                            moduleName:moduleName
                                      initialProperties:initialProperties];
                         };
RCTBridge 创建
1
2
3
4
5
6
RCTBridge *bridge = [[RCTBridge alloc] initWithBundleURL:bundleURL
                                            moduleProvider:nil
                                             launchOptions:launchOptions];
// RCTBridge 的 setUp
// ...
[self setUp];

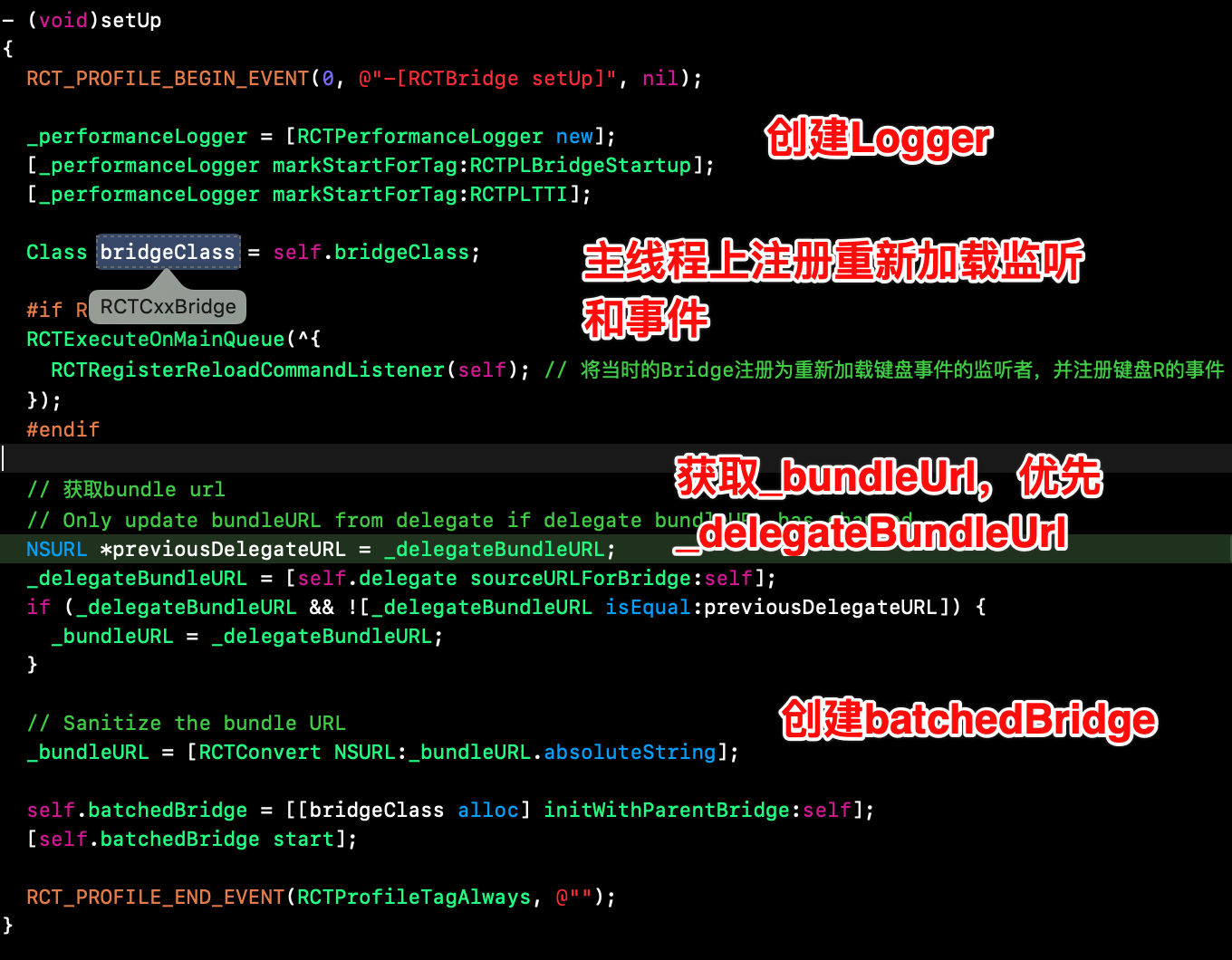

RCTBridge setUp

RCTCxxBridge 创建
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
- (instancetype)initWithParentBridge:(RCTBridge *)bridge {
  // ...

    /**
     * 设置可用状态、加载状态，以及一些数组的初始化，并将bridge设置成自己
     */
    _valid = YES;
    _loading = YES;
    _pendingCalls = [NSMutableArray new];
    _displayLink = [RCTDisplayLink new];

    _moduleDataByName = [NSMutableDictionary new];
    _moduleClassesByID = [NSMutableArray new];
    _moduleDataByID = [NSMutableArray new];

    [RCTBridge setCurrentBridge:self];
  // ...
}
RCTCxxBridge start
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
- (void)start {
  RCT_PROFILE_BEGIN_EVENT(RCTProfileTagAlways, @"-[RCTCxxBridge start]", nil);

  [[NSNotificationCenter defaultCenter]
    postNotificationName:RCTJavaScriptWillStartLoadingNotification
    object:_parentBridge userInfo:@{@"bridge": self}];

  // 创建一个启动runloop的名为com.facebook.react.JavaScript的线程，并运行
  // Set up the JS thread early
  _jsThread = [[NSThread alloc] initWithTarget:[self class]
                                      selector:@selector(runRunLoop)
                                        object:nil];
  _jsThread.name = RCTJSThreadName;
  _jsThread.qualityOfService = NSOperationQualityOfServiceUserInteractive;
#if RCT_DEBUG
  _jsThread.stackSize *= 2;
#endif
  [_jsThread start];

  dispatch_group_t prepareBridge = dispatch_group_create();

  [_performanceLogger markStartForTag:RCTPLNativeModuleInit];

  [self registerExtraModules];
  // 初始化所有的本地模块，先非主线程后主线程
  // RCTGetModuleClasses() 实际上是 RCTModuleClasses 的拷贝
  (void)[self _initializeModules:RCTGetModuleClasses() withDispatchGroup:prepareBridge lazilyDiscovered:NO];

  [_performanceLogger markStopForTag:RCTPLNativeModuleInit];

  // This doesn't really do anything.  The real work happens in initializeBridge.
  _reactInstance.reset(new Instance);

  __weak RCTCxxBridge *weakSelf = self;

  // Prepare executor factory (shared_ptr for copy into block)
  // 创建JSC实例
  std::shared_ptr<JSExecutorFactory> executorFactory;
  if (!self.executorClass) {
    if ([self.delegate conformsToProtocol:@protocol(RCTCxxBridgeDelegate)]) {
      id<RCTCxxBridgeDelegate> cxxDelegate = (id<RCTCxxBridgeDelegate>) self.delegate;
      executorFactory = [cxxDelegate jsExecutorFactoryForBridge:self];
    }
    if (!executorFactory) {
      BOOL useCustomJSC =
        [self.delegate respondsToSelector:@selector(shouldBridgeUseCustomJSC:)] &&
        [self.delegate shouldBridgeUseCustomJSC:self];
      // We use the name of the device and the app for debugging & metrics
      NSString *deviceName = [[UIDevice currentDevice] name];
      NSString *appName = [[NSBundle mainBundle] bundleIdentifier];
      // The arg is a cache dir.  It's not used with standard JSC.
      executorFactory.reset(new JSCExecutorFactory(folly::dynamic::object
        ("OwnerIdentity", "ReactNative")
        ("AppIdentity", [(appName ?: @"unknown") UTF8String])
        ("DeviceIdentity", [(deviceName ?: @"unknown") UTF8String])
        ("UseCustomJSC", (bool)useCustomJSC)
  #if RCT_PROFILE
        ("StartSamplingProfilerOnInit", (bool)self.devSettings.startSamplingProfilerOnLaunch)
  #endif
      ));
    }
  } else {
    id<RCTJavaScriptExecutor> objcExecutor = [self moduleForClass:self.executorClass];
    executorFactory.reset(new RCTObjcExecutorFactory(objcExecutor, ^(NSError *error) {
      if (error) {
        [weakSelf handleError:error];
      }
    }));
  }

  // 初始化JSC
  dispatch_group_enter(prepareBridge);
  [self ensureOnJavaScriptThread:^{
    [weakSelf _initializeBridge:executorFactory];
    dispatch_group_leave(prepareBridge);
  }];

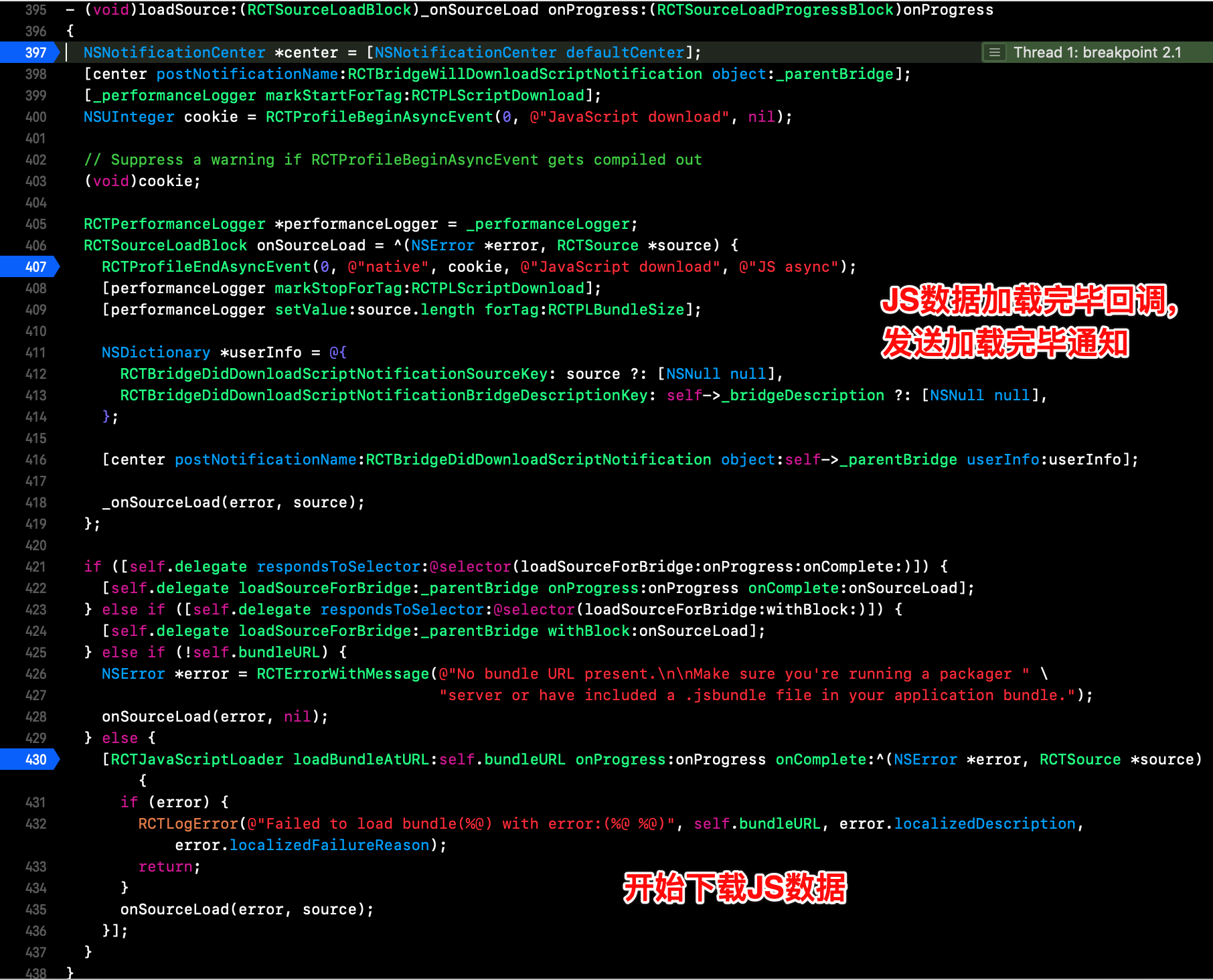

  // 开始加载JS数据
  dispatch_group_enter(prepareBridge);
  __block NSData *sourceCode;
  [self loadSource:^(NSError *error, RCTSource *source) {
    if (error) {
      [weakSelf handleError:error];
    }

    sourceCode = source.data;
    dispatch_group_leave(prepareBridge);
  } onProgress:^(RCTLoadingProgress *progressData) {
#if RCT_DEV && __has_include("RCTDevLoadingView.h")
    RCTDevLoadingView *loadingView = [weakSelf moduleForClass:[RCTDevLoadingView class]];
    [loadingView updateProgress:progressData];
#endif
  }];

  // 最后开始执行JS数据
  dispatch_group_notify(prepareBridge, dispatch_get_global_queue(QOS_CLASS_USER_INTERACTIVE, 0), ^{
    RCTCxxBridge *strongSelf = weakSelf;
    if (sourceCode && strongSelf.loading) {
      [strongSelf executeSourceCode:sourceCode sync:NO];
    }
  });
  RCT_PROFILE_END_EVENT(RCTProfileTagAlways, @"");
}
RCTModuleClasses

每一个导出类都会实现RCTBridgeModule的代理方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@protocol RCTBridgeModule <NSObject>

/**
 * Place this macro in your class implementation to automatically register
 * your module with the bridge when it loads. The optional js_name argument
 * will be used as the JS module name. If omitted, the JS module name will
 * match the Objective-C class name.
 */
#define RCT_EXPORT_MODULE(js_name) \
RCT_EXTERN void RCTRegisterModule(Class); \
+ (NSString *)moduleName { return @#js_name; } \
+ (void)load { RCTRegisterModule(self); }

+ (NSString *)moduleName;

//...
@end

RCT_EXPORT_MODULE里实现了moduleName方法，同时也在类的load方法里注册本类，下面来看下RCTRegisterModule里的方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
void RCTRegisterModule(Class moduleClass) {
  // 线程安全地注册所有的模块类，加入到RCTModuleClasses数组中
  static dispatch_once_t onceToken;
  dispatch_once(&onceToken, ^{
    RCTModuleClasses = [NSMutableArray new];
    RCTModuleClassesSyncQueue = dispatch_queue_create("com.facebook.react.ModuleClassesSyncQueue", DISPATCH_QUEUE_CONCURRENT);
  });

  RCTAssert([moduleClass conformsToProtocol:@protocol(RCTBridgeModule)],
            @"%@ does not conform to the RCTBridgeModule protocol",
            moduleClass);

  // Register module
  NSLog(@"%@", NSStringFromClass(moduleClass));
  dispatch_barrier_async(RCTModuleClassesSyncQueue, ^{
    [RCTModuleClasses addObject:moduleClass];
  });
}

RCTModuleData 创建

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
- (NSArray<RCTModuleData *> *)_initializeModules:(NSArray<id<RCTBridgeModule>> *)modules
                               withDispatchGroup:(dispatch_group_t)dispatchGroup
                                lazilyDiscovered:(BOOL)lazilyDiscovered {
  RCTAssert(!(RCTIsMainQueue() && lazilyDiscovered), @"Lazy discovery can only happen off the Main Queue");

  // Set up moduleData for automatically-exported modules
  NSArray<RCTModuleData *> *moduleDataById = [self registerModulesForClasses:modules] = {
        // ...

        NSArray *moduleClassesCopy = [moduleClasses copy];
        NSMutableArray<RCTModuleData *> *moduleDataByID = [NSMutableArray arrayWithCapacity:moduleClassesCopy.count];
        for (Class moduleClass in moduleClassesCopy) {
            NSString *moduleName = RCTBridgeModuleNameForClass(moduleClass); //去掉RK和RCT

            // Check for module name collisions
            RCTModuleData *moduleData = _moduleDataByName[moduleName];
            // 如果已经有moduleData了，并且已经有实例或new方法返回空时丢弃
            if (moduleData) {
                // ...
            }

            // 创建 moduleData ，并判断是否需要在主线程上初始化
            moduleData = [[RCTModuleData alloc] initWithModuleClass:moduleClass bridge:self];

            /*
            _moduleDataByName  记录模块数据，以模块名为key
            _moduleClassesByID 模块类名列表
            _moduleDataByID    模块数据列表
            */

            _moduleDataByName[moduleName] = moduleData;
            [_moduleClassesByID addObject:moduleClass];
            [moduleDataByID addObject:moduleData];
        }
        [_moduleDataByID addObjectsFromArray:moduleDataByID];

        RCT_PROFILE_END_EVENT(RCTProfileTagAlways, @"");

        return moduleDataByID;
  };

  // ...
    RCT_PROFILE_BEGIN_EVENT(RCTProfileTagAlways,
                            @"-[RCTCxxBridge initModulesWithDispatchGroup:] moduleData.hasInstance", nil);
    /*
    先是遍历不需要在主线程上执行的模块，并初始化这些模块;
    后在_prepareModulesWithDispatchGroup方法里在主线程上执行模块的初始化
    */
    for (RCTModuleData *moduleData in _moduleDataByID) {
      if (moduleData.hasInstance && (!moduleData.requiresMainQueueSetup || RCTIsMainQueue())) {
        // Modules that were pre-initialized should ideally be set up before
        // bridge init has finished, otherwise the caller may try to access the
        // module directly rather than via `[bridge moduleForClass:]`, which won't
        // trigger the lazy initialization process. If the module cannot safely be
        // set up on the current thread, it will instead be async dispatched
        // to the main thread to be set up in _prepareModulesWithDispatchGroup:.
        (void)[moduleData instance];
      }
    }
    RCT_PROFILE_END_EVENT(RCTProfileTagAlways, @"");

    // From this point on, RCTDidInitializeModuleNotification notifications will
    // be sent the first time a module is accessed.
    _moduleSetupComplete = YES;
    [self _prepareModulesWithDispatchGroup:dispatchGroup];
  // ...
  return moduleDataById;
}

executorFactory.reset()初始化JS执行环境，以及初始化devSettings模块以便调试用

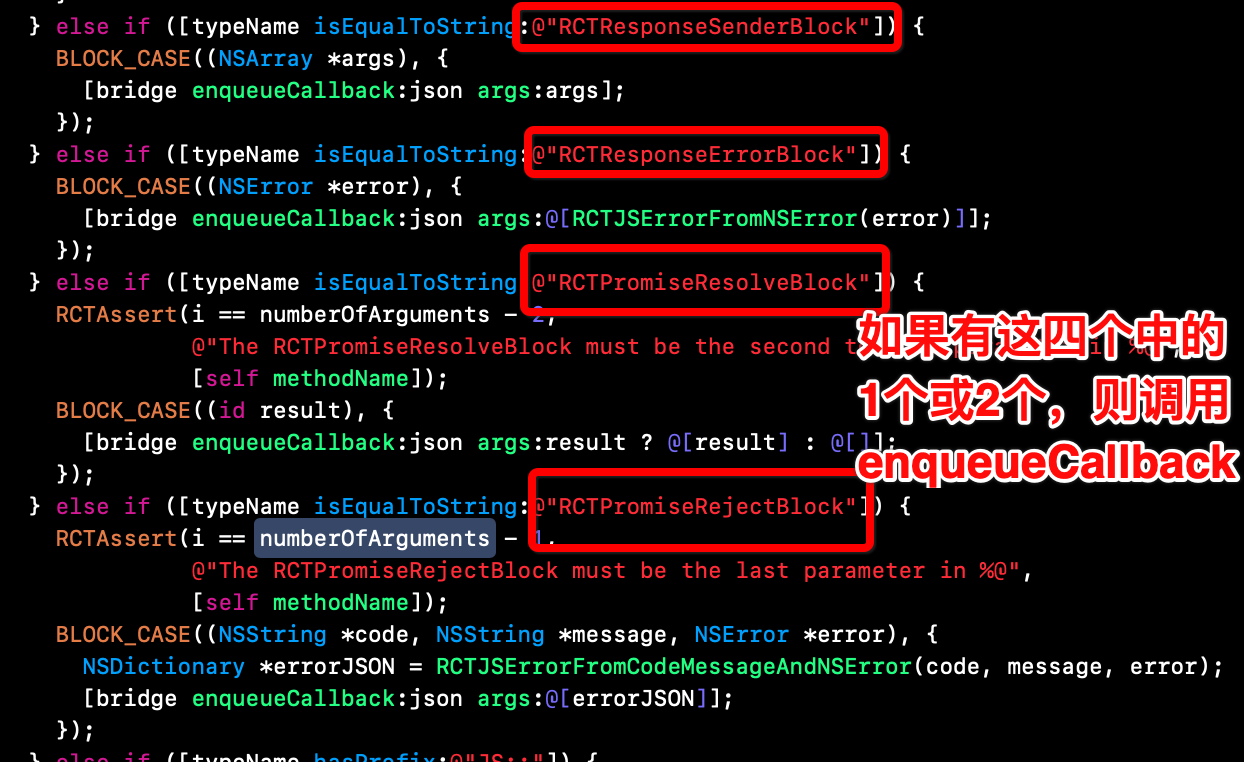

RCTModuleData 创建Module时，通过runtime查找出所有方法名前缀是 __rct_export__ 的方法生成RCTBridgeMethod对象，当需要调用本地方法时，调用processMethodSignature，先生成方法的签名（NSMethodSignature），再生成 NSInvocation, 设置参数，调用 invoke 方法，完成调用。

下面是JS需要原生回调数据时的情况：

_initializeBridge
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
- (void)_initializeBridge:(std::shared_ptr<JSExecutorFactory>)executorFactory {
  // ...
  // 创建JS消息线程
  __weak RCTCxxBridge *weakSelf = self;
  _jsMessageThread = std::make_shared<RCTMessageThread>([NSRunLoop currentRunLoop], ^(NSError *error) {
    if (error) {
      [weakSelf handleError:error];
    }
  });

  RCT_PROFILE_BEGIN_EVENT(RCTProfileTagAlways, @"-[RCTCxxBridge initializeBridge:]", nil);
  // This can only be false if the bridge was invalidated before startup completed
  if (_reactInstance) {
#if RCT_DEV
    // 调试模式下，初始化RCTObjcExecutor执行器，
    executorFactory = std::make_shared<GetDescAdapter>(self, executorFactory) = {
        std::unique_ptr<JSExecutor> createJSExecutor(
        std::shared_ptr<ExecutorDelegate> delegate,
        std::shared_ptr<MessageQueueThread> jsQueue) override {
        auto ret = factory_->createJSExecutor(delegate, jsQueue) = {
            return std::unique_ptr<JSExecutor>(
    new RCTObjcExecutor(m_jse, m_errorBlock, jsQueue, dele
        };
        bridge_.bridgeDescription =
        [NSString stringWithFormat:@"RCTCxxBridge %s",
                    ret->getDescription().c_str()];
        return std::move(ret);
    };

    /*
    与此同时之前需要在主线程上初始化的模块开始初始化
    RCTDevMenu开始注册摇晃手机和键盘事件监听
    */
#endif

    // This is async, but any calls into JS are blocked by the m_syncReady CV in Instance
    _reactInstance->initializeBridge(
      std::make_unique<RCTInstanceCallback>(self),
      executorFactory,
      _jsMessageThread,
      [self _buildModuleRegistry]);

#if RCT_PROFILE
    if (RCTProfileIsProfiling()) {
      _reactInstance->setGlobalVariable(
        "__RCTProfileIsProfiling",
        std::make_unique<JSBigStdString>("true"));
    }
#endif

    [self installExtraJSBinding];
  }

  RCT_PROFILE_END_EVENT(RCTProfileTagAlways, @"");
}

在JSCExecutor的构造函数中调用initOnJSVMThread()和installGlobalProxy()两个方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
void JSCExecutor::initOnJSVMThread() throw(JSException) {
  const bool useCustomJSC =
      m_jscConfig.getDefault("UseCustomJSC", false).getBool(); // false
  if (useCustomJSC) {
    JSC_configureJSCForIOS(true, toJson(m_jscConfig));
  }

  // 创建JS上下文
  // ...
  {
    SystraceSection s_("JSGlobalContextCreateInGroup");
    m_context =
        JSC_JSGlobalContextCreateInGroup(useCustomJSC, nullptr, globalClass);
  }
  JSC_JSClassRelease(useCustomJSC, globalClass);

  // Add a pointer to ourselves so we can retrieve it later in our hooks
  Object::getGlobalObject(m_context).setPrivate(this);

  // ...
  /*
  绑定nativeFlushQueueImmediate，nativeCallSyncHook的本地方法，
  以及创建了nativeLoggingHook、nativePerformanceNow、nativeInjectHMRUpdate JS函数
  */

  installNativeHook<&JSCExecutor::nativeFlushQueueImmediate>(
      "nativeFlushQueueImmediate");
  installNativeHook<&JSCExecutor::nativeCallSyncHook>("nativeCallSyncHook");

  installGlobalFunction(
      m_context, "nativeLoggingHook", JSCNativeHooks::loggingHook);
  installGlobalFunction(
      m_context, "nativePerformanceNow", JSCNativeHooks::nowHook);

#if DEBUG
  installGlobalFunction(
      m_context, "nativeInjectHMRUpdate", nativeInjectHMRUpdate);
#endif

  // ...
}
1
2
3
4
5
6
7
8
9
10
11
// 绑定nativeModuleProxy为NativeModules
installGlobalProxy(
        m_context,
        "nativeModuleProxy",
        exceptionWrapMethod<&JSCExecutor::getNativeModule>()) = {
            if (JSC_JSStringIsEqualToUTF8CString(m_context, propertyName, "name")) {
                return Value(m_context, String(m_context, "NativeModules"));
            }

            return m_nativeModules.getModule(m_context, propertyName);
        };
loadSource

loadBundleAtURL

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
+ (void)loadBundleAtURL:(NSURL *)scriptURL onProgress:(RCTSourceLoadProgressBlock)onProgress onComplete:(RCTSourceLoadBlock)onComplete {
  int64_t sourceLength;
  NSError *error;
  // 远程数据异步下载，本地数据同步读取
  NSData *data = [self attemptSynchronousLoadOfBundleAtURL:scriptURL
                                          runtimeBCVersion:JSNoBytecodeFileFormatVersion
                                              sourceLength:&sourceLength
                                                     error:&error];
  if (data) {
    onComplete(nil, RCTSourceCreate(scriptURL, data, sourceLength));
    return;
  }

  const BOOL isCannotLoadSyncError =
  [error.domain isEqualToString:RCTJavaScriptLoaderErrorDomain]
  && error.code == RCTJavaScriptLoaderErrorCannotBeLoadedSynchronously;

  if (isCannotLoadSyncError) {
    attemptAsynchronousLoadOfBundleAtURL(scriptURL, onProgress, onComplete);
  } else {
    onComplete(error, nil);
  }
}

这里以远程数据为例，调用attemptAsynchronousLoadOfBundleAtURL方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
static void attemptAsynchronousLoadOfBundleAtURL(NSURL *scriptURL, RCTSourceLoadProgressBlock onProgress, RCTSourceLoadBlock onComplete) {
  scriptURL = sanitizeURL(scriptURL);
  // 如果本地数据，则切后台线程读取
  if (scriptURL.fileURL) {
    // Reading in a large bundle can be slow. Dispatch to the background queue to do it.
    dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0), ^{
      NSError *error = nil;
      NSData *source = [NSData dataWithContentsOfFile:scriptURL.path
                                              options:NSDataReadingMappedIfSafe
                                                error:&error];
      onComplete(error, RCTSourceCreate(scriptURL, source, source.length));
    });
    return;
  }
  // 创建RCTMultipartDataTask并执行
  RCTMultipartDataTask *task = [[RCTMultipartDataTask alloc] initWithURL:scriptURL partHandler:^(NSInteger statusCode, NSDictionary *headers, NSData *data, NSError *error, BOOL done) {
    if (!done) {
      if (onProgress) {
          // 调试模式下绿色条显示的内容
        onProgress(progressEventFromData(data));
      }
      return;
    }

    // 出错时的处理
    if (error) {
      // ...
      return;
    }

    // 成功响应会执行下面的代码
    // 200表示已成功下载，解析并验证数据，无误就返回RCTSource
    NSString *statusCodeHeader = headers[@"X-Http-Status"];
    if (statusCodeHeader) {
      statusCode = [statusCodeHeader integerValue];
    }

    if (statusCode != 200) {
      error = [NSError errorWithDomain:@"JSServer"
                                  code:statusCode
                              userInfo:userInfoForRawResponse([[NSString alloc] initWithData:data encoding:NSUTF8StringEncoding])];
      onComplete(error, nil);
      return;
    }

    // Validate that the packager actually returned javascript.
    NSString *contentType = headers[@"Content-Type"];
    NSString *mimeType = [[contentType componentsSeparatedByString:@";"] firstObject];
    if (![mimeType isEqualToString:@"application/javascript"] &&
        ![mimeType isEqualToString:@"text/javascript"]) {
      NSString *description = [NSString stringWithFormat:@"Expected MIME-Type to be 'application/javascript' or 'text/javascript', but got '%@'.", mimeType];
      error = [NSError errorWithDomain:@"JSServer"
                                  code:NSURLErrorCannotParseResponse
                              userInfo:@{
                                         NSLocalizedDescriptionKey: description,
                                         @"headers": headers,
                                         @"data": data
                                       }];
      onComplete(error, nil);
      return;
    }

    RCTSource *source = RCTSourceCreate(scriptURL, data, data.length);
    parseHeaders(headers, source);
    onComplete(nil, source);
  } progressHandler:^(NSDictionary *headers, NSNumber *loaded, NSNumber *total) {
    // Only care about download progress events for the javascript bundle part.
    if ([headers[@"Content-Type"] isEqualToString:@"application/javascript"]) {
      onProgress(progressEventFromDownloadProgress(loaded, total));
    }
  }];

  [task startTask];
}

下载完JS数据后，开始执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
- (void)executeSourceCode:(NSData *)sourceCode sync:(BOOL)sync {
    // ...
    self->_reactInstance->loadScriptFromString(std::make_unique<NSDataBigString>(script),
                                                 sourceUrlStr.UTF8String, !async) = {
        // ...
        loadApplication(nullptr, std::move(string), std::move(sourceURL)) = {
            // ...
            nativeToJsBridge_->loadApplication(std::move(bundleRegistry), std::move(string),
                                     std::move(sourceURL)) = {
                // ...
                executor->loadApplicationScript(std::move(*startupScript),
                                      std::move(startupScriptSourceURL));
            };
        };
    };
    // ...
}

JSCExecutor::loadApplicationScript

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
void JSCExecutor::loadApplicationScript(
    std::unique_ptr<const JSBigString> script,
    std::string sourceURL) {
  // ...
  // 开始执行JS脚本
  evaluateScript(m_context, jsScript, jsSourceURL);

  flush() = {
      // ...
      bindBridge();
      callNativeModules(m_flushedQueueJS->callAsFunction({}));
      // ...
  };
  // ...
}

bindBridge

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

// __fbBatchedBridge 对应 JS 中 BatchedBridge

auto batchedBridgeValue = global.getProperty("__fbBatchedBridge");
// ...
auto batchedBridge = batchedBridgeValue.asObject();
m_callFunctionReturnFlushedQueueJS =
    batchedBridge.getProperty("callFunctionReturnFlushedQueue").asObject();
m_invokeCallbackAndReturnFlushedQueueJS =
    batchedBridge.getProperty("invokeCallbackAndReturnFlushedQueue")
        .asObject();
m_flushedQueueJS = batchedBridge.getProperty("flushedQueue").asObject();
m_callFunctionReturnResultAndFlushedQueueJS =
    batchedBridge.getProperty("callFunctionReturnResultAndFlushedQueue")
        .asObject();

映射了JS中的callFunctionReturnFlushedQueue、invokeCallbackAndReturnFlushedQueue、flushedQueue和callFunctionReturnResultAndFlushedQueue四个方法

m_flushedQueueJS->callAsFunction({})从JS中取出待处理的队列

callNativeModules()映射成调用本地方法

RCTRootView 创建

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
- (instancetype)initWithBridge:(RCTBridge *)bridge
                    moduleName:(NSString *)moduleName
             initialProperties:(NSDictionary *)initialProperties {
  // ...
  if (self = [super initWithFrame:CGRectZero]) {
    self.backgroundColor = [UIColor whiteColor];

    _bridge = bridge;
    _moduleName = moduleName;
    _appProperties = [initialProperties copy];
    _loadingViewFadeDelay = 0.25;
    _loadingViewFadeDuration = 0.25;
    _sizeFlexibility = RCTRootViewSizeFlexibilityNone;
    // 注册loading view 的开始、JS数据获取完毕和已经渲染UI的通知
    [[NSNotificationCenter defaultCenter] addObserver:self
                                             selector:@selector(bridgeDidReload)
                                                 name:RCTJavaScriptWillStartLoadingNotification
                                               object:_bridge];

    [[NSNotificationCenter defaultCenter] addObserver:self
                                             selector:@selector(javaScriptDidLoad:)
                                                 name:RCTJavaScriptDidLoadNotification
                                               object:_bridge];

    [[NSNotificationCenter defaultCenter] addObserver:self
                                             selector:@selector(hideLoadingView)
                                                 name:RCTContentDidAppearNotification
                                               object:self];

    // 显示loading View
    [self showLoadingView];

    // Immediately schedule the application to be started.
    // (Sometimes actual `_bridge` is already batched bridge here.)
    [self bundleFinishedLoading:([_bridge batchedBridge] ?: _bridge)];
  }

  RCT_PROFILE_END_EVENT(RCTProfileTagAlways, @"");

  return self;
}

bundleFinishedLoading

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
- (void)bundleFinishedLoading:(RCTBridge *)bridge {
  RCTAssert(bridge != nil, @"Bridge cannot be nil");
  if (!bridge.valid) {
    return;
  }

  // 创建RCTRootContentView，RCTRootContentView是一切React Native的父控件,本质上就是UIView
  [_contentView removeFromSuperview];
  _contentView = [[RCTRootContentView alloc] initWithFrame:self.bounds
                                                    bridge:bridge
                                                  reactTag:self.reactTag
                                            sizeFlexiblity:_sizeFlexibility] = {
        if ((self = [super initWithFrame:frame])) {
            _bridge = bridge;
            // 设置根控件的reactTag为1
            self.reactTag = reactTag;
            _sizeFlexibility = sizeFlexibility;
            // 创建RCTTouchHandler，并加到根控件上
            _touchHandler = [[RCTTouchHandler alloc] initWithBridge:_bridge];
            [_touchHandler attachToView:self];
            // 创建RCTUIManager，并绑定根控件
            [_bridge.uiManager registerRootView:self];
        }
        return self;
  };
  [self runApplication:bridge] = {
        NSString *moduleName = _moduleName ?: @"";
        NSDictionary *appParameters = @{
            @"rootTag": _contentView.reactTag,
            @"initialProps": _appProperties ?: @{},
        };

        RCTLogInfo(@"Running application %@ (%@)", moduleName, appParameters);
        /*  启动Application */
        [bridge enqueueJSCall:@"AppRegistry"
                        method:@"runApplication"
                        args:@[moduleName, appParameters]
                    completion:NULL];
  };

  _contentView.passThroughTouches = _passThroughTouches;
  [self insertSubview:_contentView atIndex:0];

  if (_sizeFlexibility == RCTRootViewSizeFlexibilityNone) {
    self.intrinsicContentSize = self.bounds.size;
  }
}

调用JS里的AppRegistry.runApplication方法，RCTCxxBridge 初始化完成，调用RCTInstanceCallback中的onBatchComplete方法，然后调用RCTUIManager的_layoutAndMount

RCTUIManager

负责处理UI相关的一切事务，包括控件的创建、更新和动画等

setBridge

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
- (void)setBridge:(RCTBridge *)bridge {
  // ...
  // 获取所有的ViewManager
  for (Class moduleClass in _bridge.moduleClasses) {
    if ([moduleClass isSubclassOfClass:[RCTViewManager class]]) {
      RCTComponentData *componentData = [[RCTComponentData alloc] initWithManagerClass:moduleClass
                                                                                bridge:_bridge];
      componentDataByName[componentData.name] = componentData;
    }
  }

  _componentDataByName = [componentDataByName copy];

  // 监听RCTAccessibilityManagerDidUpdateMultiplierNotification、设备方向以及键盘弹出/消失的通知
  [[NSNotificationCenter defaultCenter] addObserver:self
                                           selector:@selector(didReceiveNewContentSizeMultiplier)
                                               name:RCTAccessibilityManagerDidUpdateMultiplierNotification
                                             object:_bridge.accessibilityManager];
#if !TARGET_OS_TV
  [[NSNotificationCenter defaultCenter] addObserver:self
                                           selector:@selector(namedOrientationDidChange)
                                               name:UIDeviceOrientationDidChangeNotification
                                             object:nil];
#endif
  [RCTLayoutAnimation initializeStatics];
}

registerRootView

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
- (void)registerRootView:(RCTRootContentView *)rootView {
  // ...

  // _viewRegistry保存所有的view，key是reactTag
  _viewRegistry[reactTag] = rootView;

  // Register shadow view
  RCTExecuteOnUIManagerQueue(^{
    if (!self->_viewRegistry) {
      return;
    }
    // _shadowViewRegistry保存所有的shadowView，shadowView与rootView一一对应，负责更新rootView的属性或动画执行
    RCTRootShadowView *shadowView = [RCTRootShadowView new];
    shadowView.availableSize = availableSize;
    shadowView.reactTag = reactTag;
    shadowView.viewName = NSStringFromClass([rootView class]);
    self->_shadowViewRegistry[shadowView.reactTag] = shadowView;
    // 保存reactTag
    [self->_rootViewTags addObject:reactTag];
  });
}

_layoutAndMount

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
- (void)_layoutAndMount {
  // RCTShadowView解析所有的props，并设置rootView的props
  [self _dispatchPropsDidChangeEvents];
  // 处理其子视图的props
  [self _dispatchChildrenDidChangeEvents];

  [_observerCoordinator uiManagerWillPerformLayout:self];

  // 开始计算(yoga库)并更新rootView属性，具体的有兴趣可以去看一看
  for (NSNumber *reactTag in _rootViewTags) {
    RCTRootShadowView *rootView = (RCTRootShadowView *)_shadowViewRegistry[reactTag];
    [self addUIBlock:[self uiBlockWithLayoutUpdateForRootView:rootView]];
  }

  [_observerCoordinator uiManagerDidPerformLayout:self];

  [_observerCoordinator uiManagerWillPerformMounting:self];

  [self flushUIBlocksWithCompletion:^{
    [self->_observerCoordinator uiManagerDidPerformMounting:self];
  }];
}


接下来会调用RCTUIManager createView:viewName:rootTag:props:方法创建子视图

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
RCT_EXPORT_METHOD(createView:(nonnull NSNumber *)reactTag
                  viewName:(NSString *)viewName
                  rootTag:(nonnull NSNumber *)rootTag
                  props:(NSDictionary *)props) {
  RCTComponentData *componentData = _componentDataByName[viewName];
  if (componentData == nil) {
    RCTLogError(@"No component found for view with name \"%@\"", viewName);
  }

  // 先注册shadowView
  RCTShadowView *shadowView = [componentData createShadowViewWithTag:reactTag];
  if (shadowView) {
    [componentData setProps:props forShadowView:shadowView];
    _shadowViewRegistry[reactTag] = shadowView;
    RCTShadowView *rootView = _shadowViewRegistry[rootTag];
    RCTAssert([rootView isKindOfClass:[RCTRootShadowView class]] ||
              [rootView isKindOfClass:[RCTSurfaceRootShadowView class]],
      @"Given `rootTag` (%@) does not correspond to a valid root shadow view instance.", rootTag);
    shadowView.rootView = (RCTRootShadowView *)rootView;
  }

  // 在主线程上创建对应的view，并加到_viewRegistry数组中，并设置props
  __block UIView *preliminaryCreatedView = nil;

  void (^createViewBlock)(void) = ^{
    // Do nothing on the second run.
    if (preliminaryCreatedView) {
      return;
    }

    preliminaryCreatedView = [componentData createViewWithTag:reactTag];

    if (preliminaryCreatedView) {
      self->_viewRegistry[reactTag] = preliminaryCreatedView;
    }
  };

  // We cannot guarantee that asynchronously scheduled block will be executed
  // *before* a block is added to the regular mounting process (simply because
  // mounting process can be managed externally while the main queue is
  // locked).
  // So, we positively dispatch it asynchronously and double check inside
  // the regular mounting block.

  RCTExecuteOnMainQueue(createViewBlock);

  [self addUIBlock:^(__unused RCTUIManager *uiManager, __unused NSDictionary<NSNumber *, UIView *> *viewRegistry) {
    createViewBlock();

    if (preliminaryCreatedView) {
      // 设置view的props
      [componentData setProps:props forView:preliminaryCreatedView];
    }
  }];

  // 将需要更新的props增加到_shadowViewsWithUpdatedProps里
  [self _shadowView:shadowView didReceiveUpdatedProps:[props allKeys]];
}

在导出视图的Manager中，如果需要暴露一些属性设置，一般会加RCT_EXPORT_VIEW_PROPERTY宏，这个宏会把方法名加上propConfig_的前缀

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
- (void)setProps:(NSDictionary<NSString *, id> *)props forShadowView:(RCTShadowView *)shadowView {
  if (!shadowView) {
    return;
  }

  [props enumerateKeysAndObjectsUsingBlock:^(NSString *key, id json, __unused BOOL *stop) {
    [self propBlockForKey:key isShadowView:YES](shadowView, json) = {
        RCTPropBlockDictionary *propBlocks = isShadowView ? _shadowPropBlocks : _viewPropBlocks;
        RCTPropBlock propBlock = propBlocks[name];
        if (!propBlock) {
            创建props的block，也是通过runtime获取对应方法名，通过NSInvocation来完成调用，具体的有兴趣可以去看看
            propBlock = [self createPropBlock:name isShadowView:isShadowView];

            propBlocks[name] = [propBlock copy];
        }
        return propBlock;
    };
  }];
}

创建完视图后，开始设置每个视图的子视图（setChildren:reactTags:），不断地循环 createView 和 setChildren 直到整个页面渲染完毕

RCTTouchHandler

手势事件的捕获者并把事件传递给事件分发者RCTEventDispatcher进行分发

初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
- (instancetype)initWithBridge:(RCTBridge *)bridge {
  RCTAssertParam(bridge);

  if ((self = [super initWithTarget:nil action:NULL])) {
    // 每一个实例都有RCTEventDispatcher的实例，RCTEventDispatcher负责把事件传给JS，包括手势事件和输入框文本相关事件
    _eventDispatcher = [bridge moduleForClass:[RCTEventDispatcher class]];

    _nativeTouches = [NSMutableOrderedSet new];
    _reactTouches = [NSMutableArray new];
    _touchViews = [NSMutableArray new];

    // 落在控件内的事件不被取消，任何事件都被立即处理
    self.cancelsTouchesInView = NO;
    self.delaysTouchesBegan = NO; // This is default value.
    self.delaysTouchesEnded = NO;

    self.delegate = self;
  }

  return self;
}

当有点击事件时，RCTEventDispatcher调用sendEvent:方法,加入到事件队列中，开始调用dispatchEvent:方法，调用JS对应方法

1
[_bridge enqueueJSCall:[[event class] moduleDotMethod] args:[event arguments]]; // event 有view的reactTag，以便JS中查找到对应方法

enqueueJSCall: RCTEventEmitter.receiveTouches，事实上是RN里RCTEventEmitter的监听事件负责分发
args: RCTNormalizeInputEventName(_eventName), _reactTouches, _changedIndexes

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
- (void)sendEvent:(id<RCTEvent>)event {
  [_observersLock lock];

  for (id<RCTEventDispatcherObserver> observer in _observers) {
    [observer eventDispatcherWillDispatchEvent:event];
  }

  [_observersLock unlock];

  [_eventQueueLock lock];

  NSNumber *eventID = RCTGetEventID(event);

  id<RCTEvent> previousEvent = _events[eventID];
  if (previousEvent) {
    RCTAssert([event canCoalesce], @"Got event %@ which cannot be coalesced, but has the same eventID %@ as the previous event %@", event, eventID, previousEvent);
    event = [previousEvent coalesceWithEvent:event];
  } else {
    [_eventQueue addObject:eventID];
  }
  _events[eventID] = event;

  BOOL scheduleEventsDispatch = NO;
  if (!_eventsDispatchScheduled) {
    _eventsDispatchScheduled = YES;
    scheduleEventsDispatch = YES;
  }

  // We have to release the lock before dispatching block with events,
  // since dispatchBlock: can be executed synchronously on the same queue.
  // (This is happening when chrome debugging is turned on.)
  [_eventQueueLock unlock];

  if (scheduleEventsDispatch) {
    [_bridge dispatchBlock:^{
        [self flushEventsQueue] = {
            [_eventQueueLock lock];
            NSDictionary *events = _events;
            _events = [NSMutableDictionary new];
            NSMutableArray *eventQueue = _eventQueue;
            _eventQueue = [NSMutableArray new];
            _eventsDispatchScheduled = NO;
            [_eventQueueLock unlock];

            for (NSNumber *eventId in eventQueue) {
                [self dispatchEvent:events[eventId]] = {
                    [_bridge enqueueJSCall:[[event class] moduleDotMethod] args:[event arguments]];
                };
            }
        };
    } queue:RCTJSThread];
  }
}

当有输入事件时，RCTEventDispatcher则会调用sendTextEventWithType:reactTag:text:key:eventCount:方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
- (void)sendTextEventWithType:(RCTTextEventType)type
                     reactTag:(NSNumber *)reactTag
                         text:(NSString *)text
                          key:(NSString *)key
                   eventCount:(NSInteger)eventCount
{
  static NSString *events[] = {
    @"focus", // 获取焦点
    @"blur", // 终止编辑之后
    @"change",  // 文本改变
    @"submitEditing", // 当按下右下角最后一个键时
    @"endEditing", // 终止编辑
    @"keyPress" // 按下键盘上的键
  };

  NSMutableDictionary *body = [[NSMutableDictionary alloc] initWithDictionary:@{
    @"eventCount": @(eventCount),
    @"target": reactTag
  }];

  if (text) {
    body[@"text"] = text;
  }

  if (key) {
    if (key.length == 0) {
      key = @"Backspace"; // 当按下删除键时
    } else {
      switch ([key characterAtIndex:0]) {
        case '\t':
          key = @"Tab";
          break;
        case '\n':
          key = @"Enter";
        default:
          break;
      }
    }
    body[@"key"] = key;
  }

#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wdeprecated-declarations"
  [self sendInputEventWithName:events[type] body:body] = {
        name = RCTNormalizeInputEventName(name);
        // 由于输入比较慢，不需要考虑并发的问题
        [_bridge enqueueJSCall:@"RCTEventEmitter"
                        method:@"receiveEvent"
                            args:body ? @[body[@"target"], name, body] : @[body[@"target"], name]
                    completion:NULL];
  };
#pragma clang diagnostic pop
}

从上面的代码可以看出输入事件和手势事件最终都是调用bridge enqueueJSCall:method:args:completion方法，模块都是RCTEventEmitter，但是方法名一个是 receiveEvent，另一个是 receiveTouches。

-------------本文结束感谢您的阅读-------------
